With features of high power capacity, wide bandwidth and high withstand voltage, 1-3 composite high-frequency broadband  piston transducer is widely used in ADCP / DVL, single beam echo-sounder, parametric acoustic sonar, high-frequency directional communication system and so on. With features of high power capacity, wide bandwidth and high withstand voltage, 1-3 composite high-frequency broadband  piston transducer is widely used in ADCP / DVL, single beam echo-sounder, parametric acoustic sonar, high-frequency directional communication system and so on.

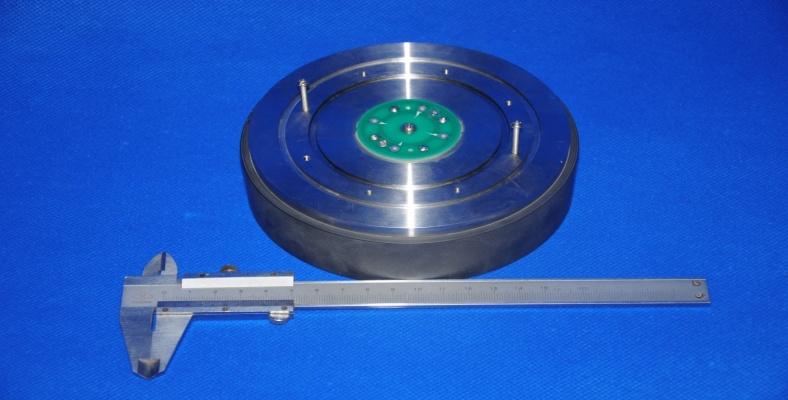

1-3 composite high-frequency broadband piston transducer

Characteristics

CT-150

CT-200

CT-300

CT-600

CT-1000

CT-1200

Resonance frequency Fr(kHz)

150.0

200.0

300.0

600.0

1000.0

1200.0

Bandwidth
Δf (kHz)

45.0

60.0

90.0

180.0

300.0

360.0

Impedance @ Fr (Ohms)

120.0

60.0

50.0

50.0

50.0

35.0

Capacitance (pF)

7500.0

10000.0

7900.0

4000.0

2500.0

3000.0

Beam angle (°, -3dB)

5.0

3.58

3.3

3.3

3.2

2.7

Height (mm)

35.0

30.0

25.0

20.0

15.0

15.0

Diameter (mm)

135.0

140.0

105.0

55.0

36.0

36.0

Transmit Voltage Response
(dB,Ref. 1uPa/Volt)

179.0

183.0

186.0

185.0

186.0

189.0

Receive sensitivity
(dB,Ref. 1Volt/μPa)

-176.0

-179.0

-183.0

-190.0

-193.0

-195.0

Ceramic diameter (mm)

120.0

125.0

90.0

45.0

28.0

28.0
